Thermal Thermo-forming Label Sticker Heat Shrinking Wrapping Photo Frame Toys Packaging Machine

Product Categories

Zhongshan Xingke Automation Equipment Co., Ltd.

Contact Now

Thermal Thermo-forming Label Sticker Heat Shrinking Wrapping Photo Frame Toys Packaging Machine

Name: Thermal Thermoforming Label Sticker Heat Shrinking Wrapping Photo Frame Toys Packaging Machine
Brand: xingke
Price: 21 USD

China Thermal Thermo-forming Label Sticker Heat Shrinking Wrapping Photo Frame Toys Packaging Machine wholesale

Type : Wrapping Machine

Applicable Industries : Building Material Shops, Manufacturing Plant, Other

After Warranty Service : Video technical support, Online support, Spare parts

Local Service Location : None

Showroom Location : None

Condition : New

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles

Packaging Type : Film

Packaging Material : Plastic, Paper, Metal, Glass, Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380V/50Hz

Place of Origin : Guangdong, China

Brand Name : xingke

Dimension(L*W*H) : length 3750mm/width 1100mm/height 1700mm

Weight : 800 KG

Certification : ce

After-sales Service Provided : Online support, Video technical support, Free spare parts

Warranty : 1 Year

Key Selling Points : Easy to Operate

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : PLC, Other, Motor, Engine

Product name : Vertical up and down sealing and cutting machine

Sensing method : horizontal/vertical

Bag size : length within 500, width within 200 (can be customized)

Packing speed : 5-60 packs/min

Sealing shape : flat mouth heat shrinking

Bag side shape : flat mouth heat shrinking

Conveying method : belt + roller

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 20 Set/Sets per Month

Price : $21,730.00/sets >=1 sets

Contact Now

Thermal Thermo-forming Label Sticker Heat Shrinking Wrapping Photo Frame Toys Packaging Machine

Equipment model	XK-FQ500
Sensing method	horizontal/vertical
Bag size	length within 500, width within 200 (can be customized)
Packing speed	5-60 bags/min
Sealing shape	flat mouth heat shrinking
Voltage power	380V/50Hz P≈14KW
Weight	about 800KG
Bag side shape	flat mouth heat shrinking
Dimensions	length 3750mm/width 1100mm/height 1700mm

Vertical up and down sealing and cutting machine

1) Technical features 1. Fully automatic feeding, conveying, bagging and sealing are completed at one time, with high work efficiency and simple operation. If you need to change the packaging size, you only need to adjust the height and wide handle. 2. No smoke is generated during sealing, reducing environmental pollution. 3. PLC electric eye control, accurate and durable, and equipped with safety protection devices. 4. Material induction horizontal or vertical double electric eye induction mode, connected to the heat shrink furnace for tightening. 5. The use of electronic governor can step regulate the speed of the conveyor belt, and double-layer heat insulation device. 6. Keep the indoor constant temperature and ensure that the appearance is not too hot, stainless steel heater. 7. The high-power fan has large air volume and uniform air flow, which makes the shrinking machine heat up quickly and ensures the perfect shrinkage of small products. 8. The conveying chain adopts solid rollers and high temperature resistant silicone tube outside, which will not burn the product and can withstand heavy objects. 2) Scope of application and functional characteristics 1. This product is suitable for packaging shrinkage of food, medicine, chemical industry, electronic products, printed matter, toys, furniture, bathroom lighting and other products. For example, carton, door panel, glass, hardware frame is suitable for PVC, OPP, POF, PP film, this model is mainly conventional products packaging conventional POF heat shrinkable. 2. Suitable for PVC, OPP, POF, PP, PE heat shrinkable films.

Company Profile

Buyer feedback

Exhibition

Certifications

FAQ

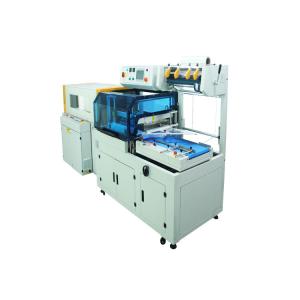

Thermal Thermo-forming Label Sticker Heat Shrinking Wrapping Photo Frame Toys Packaging Machine Images
