automatic small hardware plastic parts counting bagging packaging machinery screw bolt packing machine

Name: automatic small hardware plastic parts counting bagging packaging machinery screw bolt packing machine
Brand: XingKe
Price: 4 USD

China automatic small hardware plastic parts counting bagging packaging machinery screw bolt packing machine wholesale

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Other, Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock

Weight (KG) : 180

Showroom Location : None

Condition : New

Function : counting, Automatic packaging, High Effieciency

Application : Commodity, Medical, Machinery & Hardware, Textiles, screws, nuts, plain washers, spring washers, toys, standard parts

Packaging Type : Bags, Pouch, case, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V/50HZ

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 1340*1080*1520MM

Warranty : 1 years

Key Selling Points : Easy to Operate

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Automatic Vertical Packing Machine

Counting method : optical fiber counting/blocking and placing

Keyword : Packaging Machinery Equipment

Air supply : 0.4-0.8MPA

Advantage : Servo Motor Control

Feature : Easy Opperation

After-sales Service Provided : Video Technical Support

Packaging : plastic box

After Warranty Service : Video Technical Support\Online Support\

Packaging Details : Packed in wooden cases

Port : guanhzhou

Supply Ability : 20 Set/Sets per Month

Price : $4,150.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

Equipment model	XK-B862
Counting method	optical fiber counting/blocking and putting
Packing speed	1-60 bags/min
Voltage power	220V/50HZ P≈0.6KW
Air supply	0.4-0.8MPA
Dimensions	length 1370mm/ width 1080mm/ height 1520mm
Weight	about 180KG

automatic small hardware plastic parts counting bagging packaging machinery screw bolt packing machine

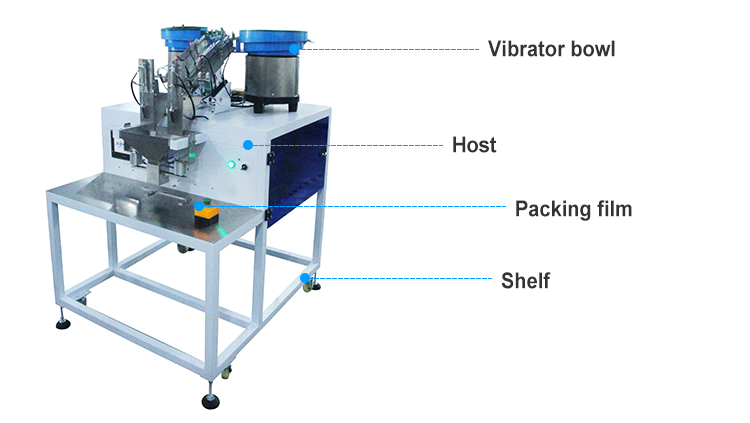

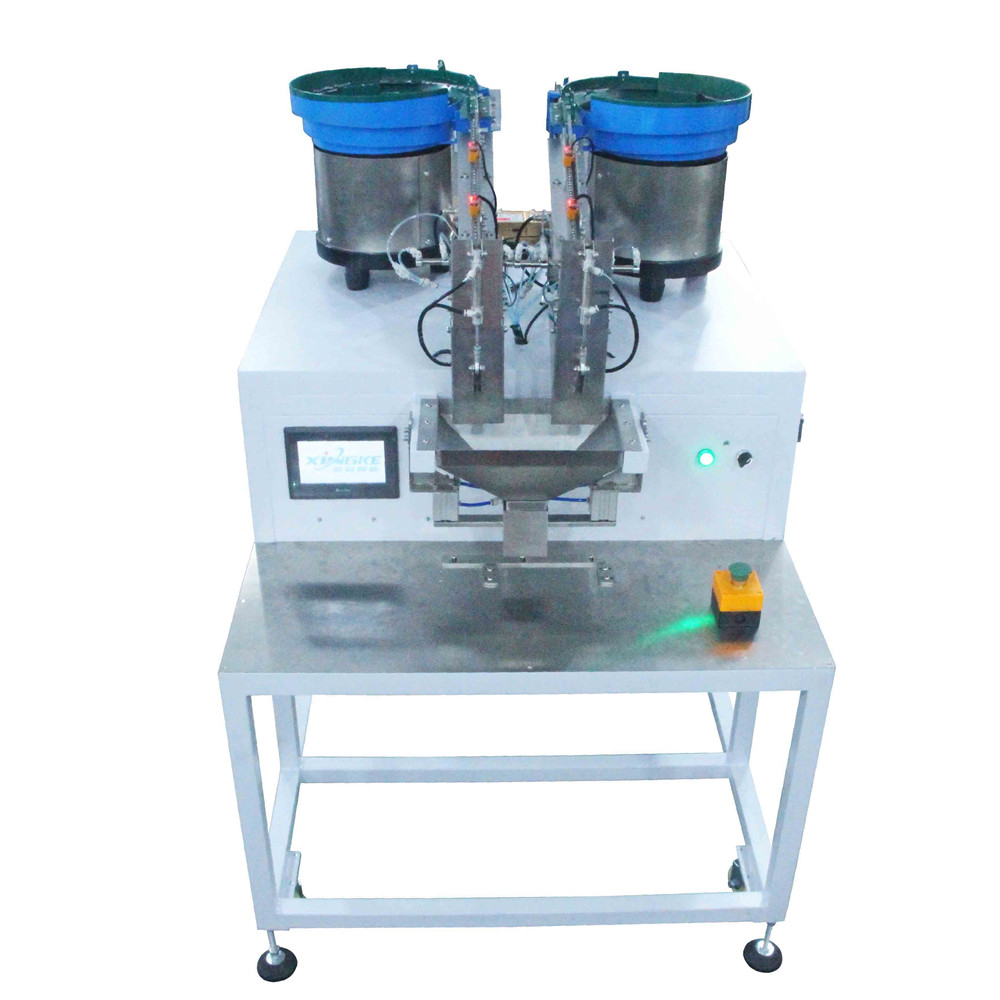

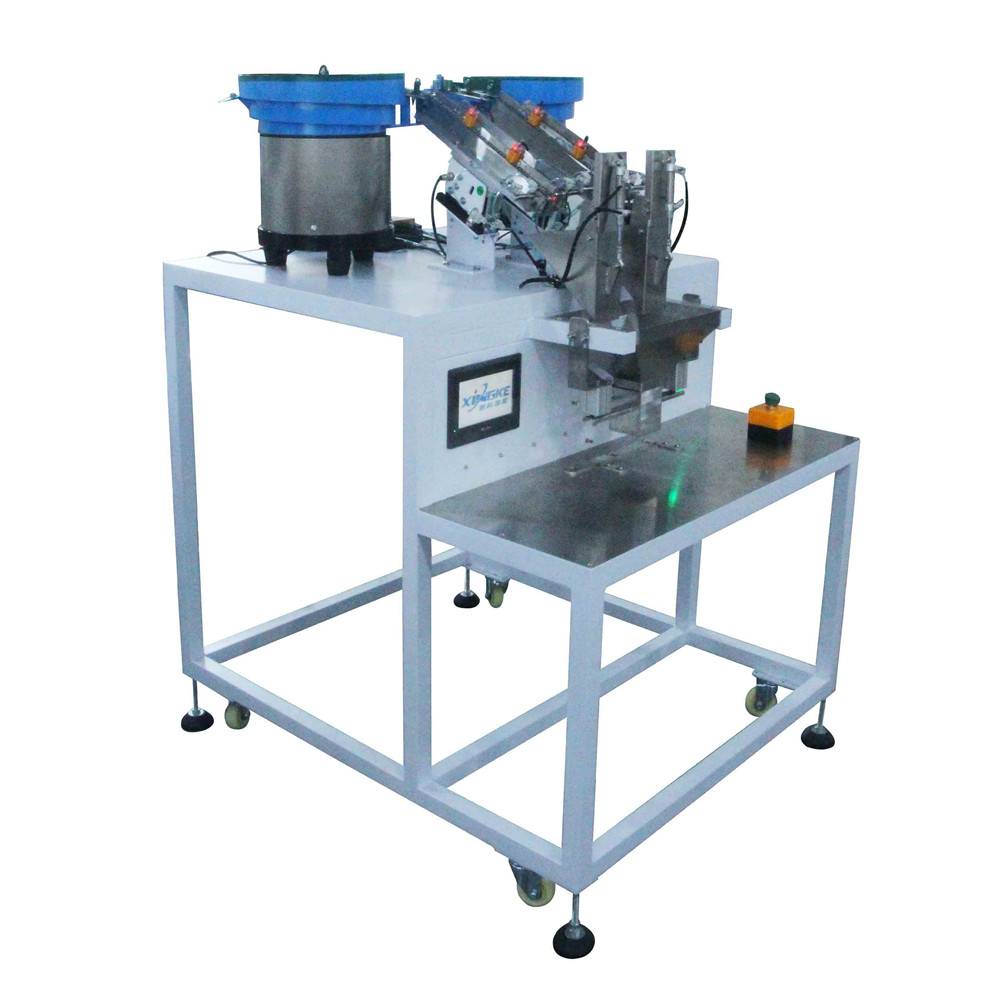

XK-B862 (double disc counting packaging machine)

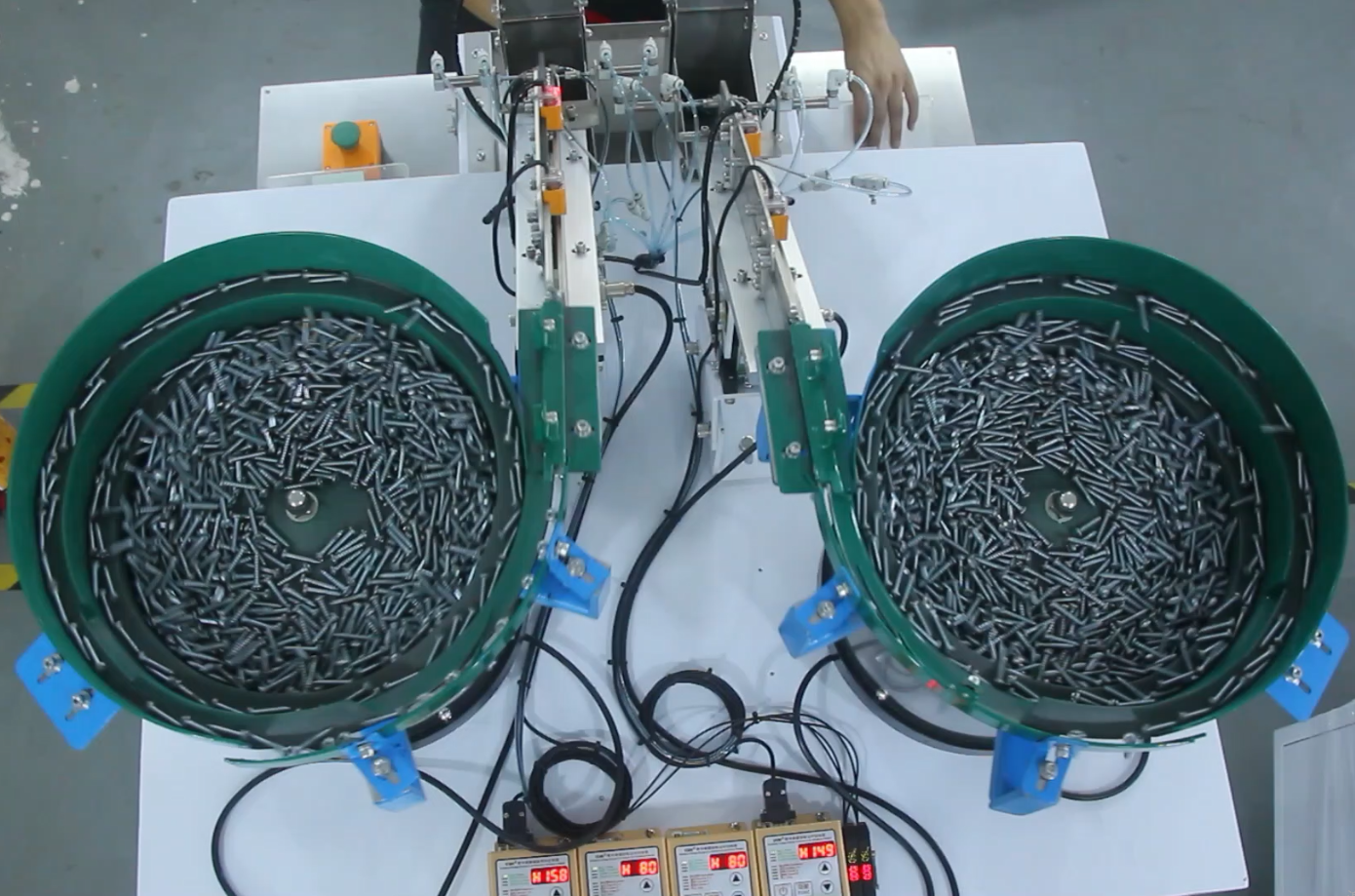

(1) Technical characteristics 1. The vibrating disc automatically arranges materials, counts, fills and counts output. 2. The blanking port automatically senses blanking.

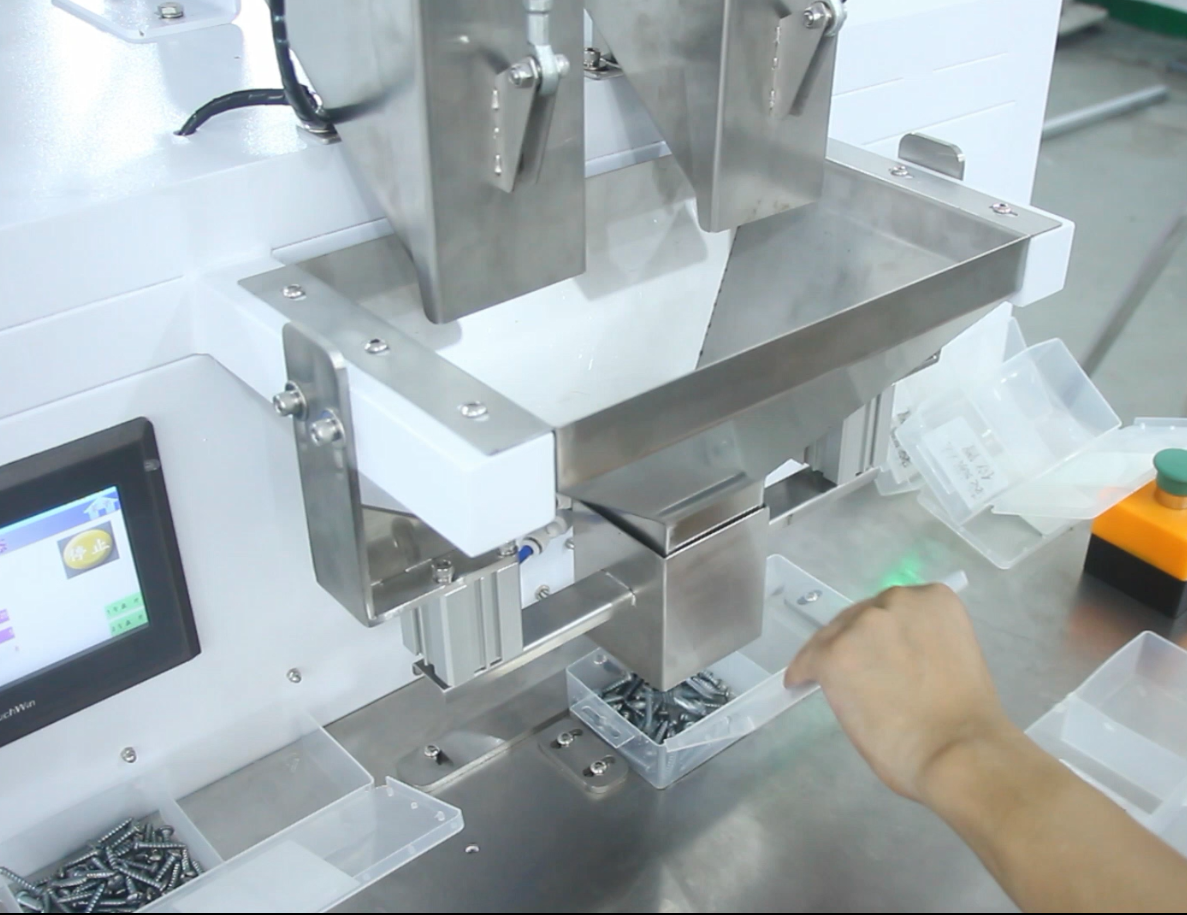

(2) Scope of application and functional characteristics 1. This product is suitable for automatic mixing or separate packaging of two kinds of materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. After the automatic counting of the vibrating disk, the product is filled into the hopper, and the blanking port automatically inducts before discharging.
