Multi - disc Screw Hardware Accessories Packing Plastic Rotary Bucket Type Packing Machine

Name: Multi disc Screw Hardware Accessories Packing Plastic Rotary Bucket Type Packing Machine
Brand: XingKe
Price: 9 USD

China Multi - disc Screw Hardware Accessories Packing Plastic Rotary Bucket Type Packing Machine wholesale

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Other, Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock

Weight (KG) : 700

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Labeling, Laminating, Sealing, counting, Automatic packaging

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Textiles, Cigarettes, Tobacco

Packaging Type : Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood, CPP

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 3800*1200*1550mm

Warranty : 1 years

Key Selling Points : High Productivity

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

The length of the bag : Less than 200

Air supply : 0.4-0.8MPA

Can increase the 1 : hoist

Can increase the 2 : Check weight said

Can increase the 3 : Code printer

Can increase the 4 : The cursor

Service : Video technical support

After Warranty Service : Spare parts

Local Service Location : None

Certification : ce

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 100 Set/Sets per Month

Price : $9,200.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

Equipment model	XK-B866T
Counting method	optical fiber counting/blocking and placing
Bag size	40-140 wide and 200 long (conventional 140)
Packing speed	1-60 bags/min
Sealing shape	stripe, back sealing/trilateral sealing (normally back sealing)
oltage power	220V/50HZ P≈1.5KW
Air source requirements	0.4-0.8MPA
Bag mouth shape	pattern knife tooth shape
Dimensions	3800mm long/1200mm wide/1550mm high
Weight	about 700KG

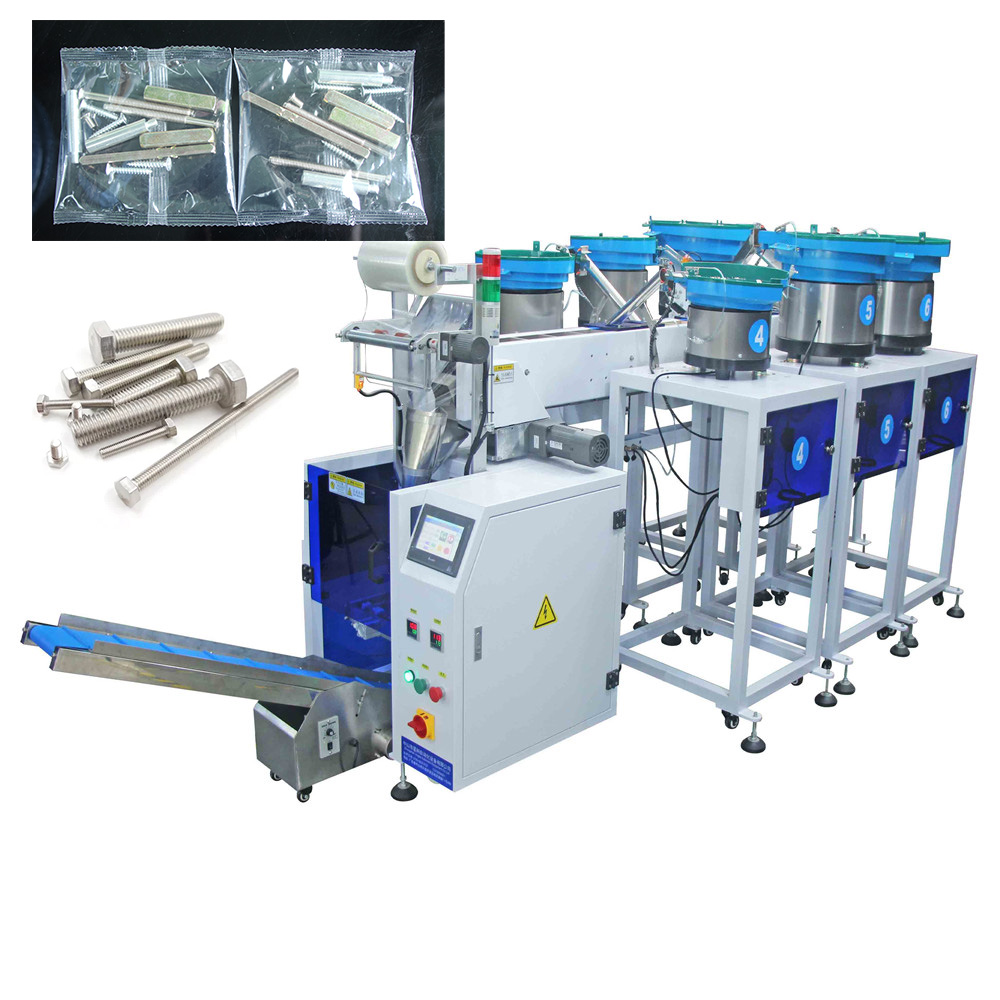

Multi - disc Screw Hardware Accessories Packing Plastic Rotary Bucket Type Packing Machine

XK-B866T (6-coil chain bucket packing machine) (1) Technical characteristics 1. The vibrating disc automatically arranges materials, counts, fills, packs, seals and counts output. 2. The intelligent temperature control system is adopted, with stable temperature control and adjustable temperature as required. 3. The length of the packaging bag is adjustable, and the total number of packages is adjustable. When the set number is reached, an automatic alarm will be given. 4. After packaging, the bag type is uniform, regular, beautiful and firm, and the expansion equipment such as code printer, weight inspection scale, labeling machine and elevator can also be installed. (2) Scope of application and functional characteristics 1. This product is suitable for automatic mixing or separate packaging of less than six kinds of materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. This product uses the chain bucket type to drive the material box to rotate, the vibrating disk automatically counts the materials into the material box, the chain bucket fills the product into the automatic packaging of the shaper, and other materials can also be put into the mixed packaging manually using the spare space of the equipment. 2. It is applicable to "OPP/CPP/composite membrane" as sealing material.
