8 Vibrator Bowls Chain Bucket Automatic Filling Sealing And Packaging Machine

Product Categories

Zhongshan Xingke Automation Equipment Co., Ltd.

Contact Now

8 Vibrator Bowls Chain Bucket Automatic Filling Sealing And Packaging Machine

Name: 8 Vibrator Bowls Chain Bucket Automatic Filling Sealing And Packaging Machine
Brand: XingKe
Price: 13 USD

China 8 Vibrator Bowls Chain Bucket Automatic Filling Sealing And Packaging Machine wholesale

Type : Multi-Function Packaging Machine

Production Capacity : 1-60 packs/min

Applicable Industries : Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Printing Shops, Construction works , Other, Hardware sanitary ware, Hardware parts, Plastic, Lamp act the role ofing, Furniture, Intelligent lock

Weight (KG) : 800

Showroom Location : None

Condition : New

Function : FILLING, Wrapping, Labeling, Sealing, counting, Automatic packaging

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

Packaging Type : Bags, Pouch, Three edge-sealing

Packaging Material : Plastic, Paper, Metal, Glass, Wood

Automatic Grade : Automatic

Driven Type : Electric

Place of Origin : Guangdong, China

Brand Name : XingKe

Dimension(L*W*H) : 3200*2100*1650mm

Warranty : 1 years

Key Selling Points : Easy to Operate

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Other, Bearing, Solenoid valve, cylinder

Product name : Automatic Packing Machine

Counting method : optical fiber counting/blocking and putting

Bag size : width 40-140, length less than 200

Packing speed : 1-60 bags/min

Sealing shape : Sealing shape

Film material : OPP CPP PET PE

Voltage power : 220V/50HZ

Air supply : 0.4-0.8MPA

Bag mouth shape : figure cutter tooth shape

Packaging Details : Packed in wooden cases

Port : guangzhou shenzhen

Supply Ability : 100 Set/Sets per Month

Price : $13,600.00/sets >=1 sets

MOQ : 1set

Delivery Time : 10-15 days

Payment Terms : T/T / west Union/ Money gram / Credit Card

Contact Now

Product Description

Equipment model: XK-B868Z Counting method: optical fiber counting/blocking and putting Bag size: width 40-140, length less than 200 (usually 140) Packing speed: 1-60 bags/min Sealing shape: stripe/back seal/3 sides seal (usually back seal) Voltage power: 220V/50HZ P≈3KW Air supply: 0.4-0.8MPA Bag mouth shape: figure cutter tooth shape Dimensions: length 3200mm/ width 2100mm/ height 1650mm Weight: about 800KG

8 Vibrator Bowls Chain Bucket Automatic Filling Sealing And Packaging Machine

XK-B868Z(8 drums mixing products packing bag packaging machine)

1) Technical characteristics 1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs. 3. The length of packaging bag and the total number of packaging are adjustable, automatic alarm when the set number is reached. 4. After packing, the bag is uniform and firm. About the machine, it can also be equipped with coding machine, check weighting, labeling machine, conveyor and other expansion equipment. 2)Scope of application and functional features 1. This product is suitable for a variety of automatic counting material put in mix or separate packaging, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc.. This product uses a chain bucket climbing type to drive the material box to rotate, artificial material delivery to box, automatically packaging products fill the bucket to molding machine. This product uses climbing way reduces the height of trailers more than 8 drums work stations can be added after the bucket, which can continue more specifications of material mixing and automatic packaging, and can also use the spare space for manual putting. 2. It is suitable for "OPP/CPP/ lamination film" as sealing material.

Company Profile

Buyer feedback

Exhibition

Certifications

FAQ

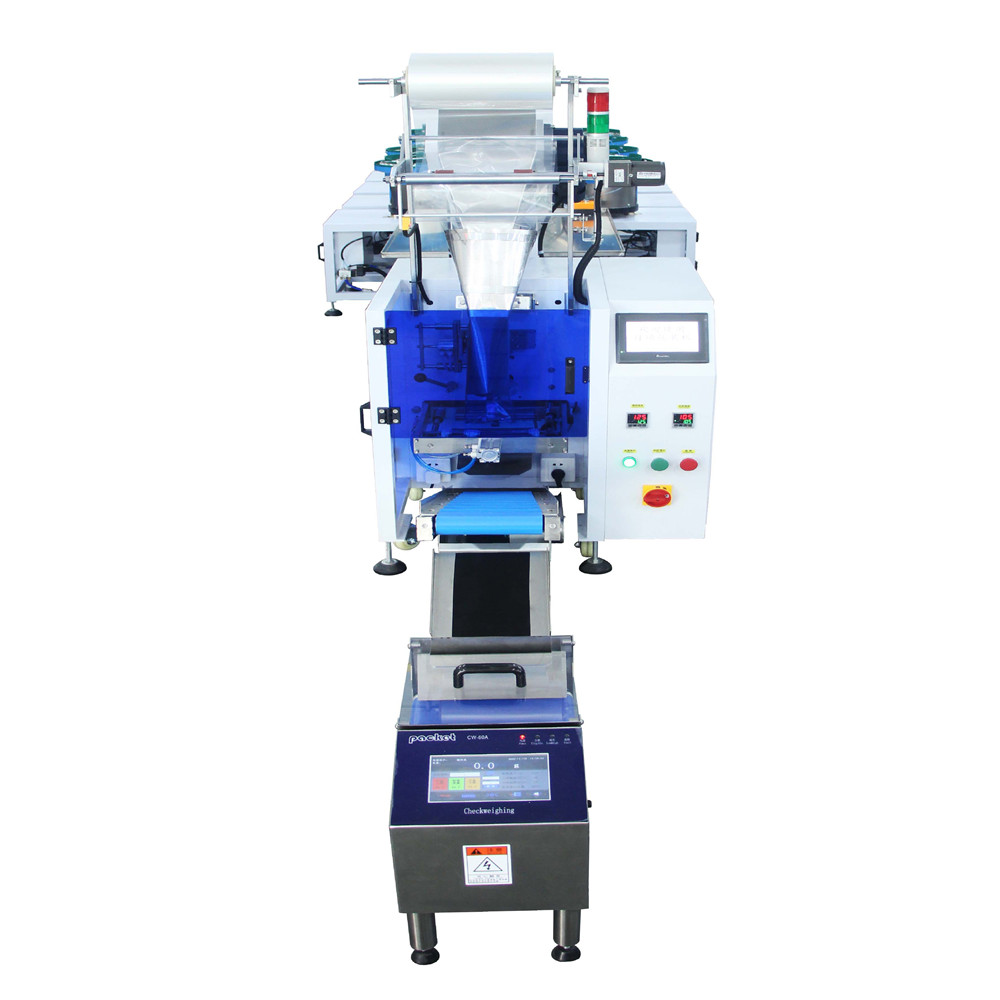

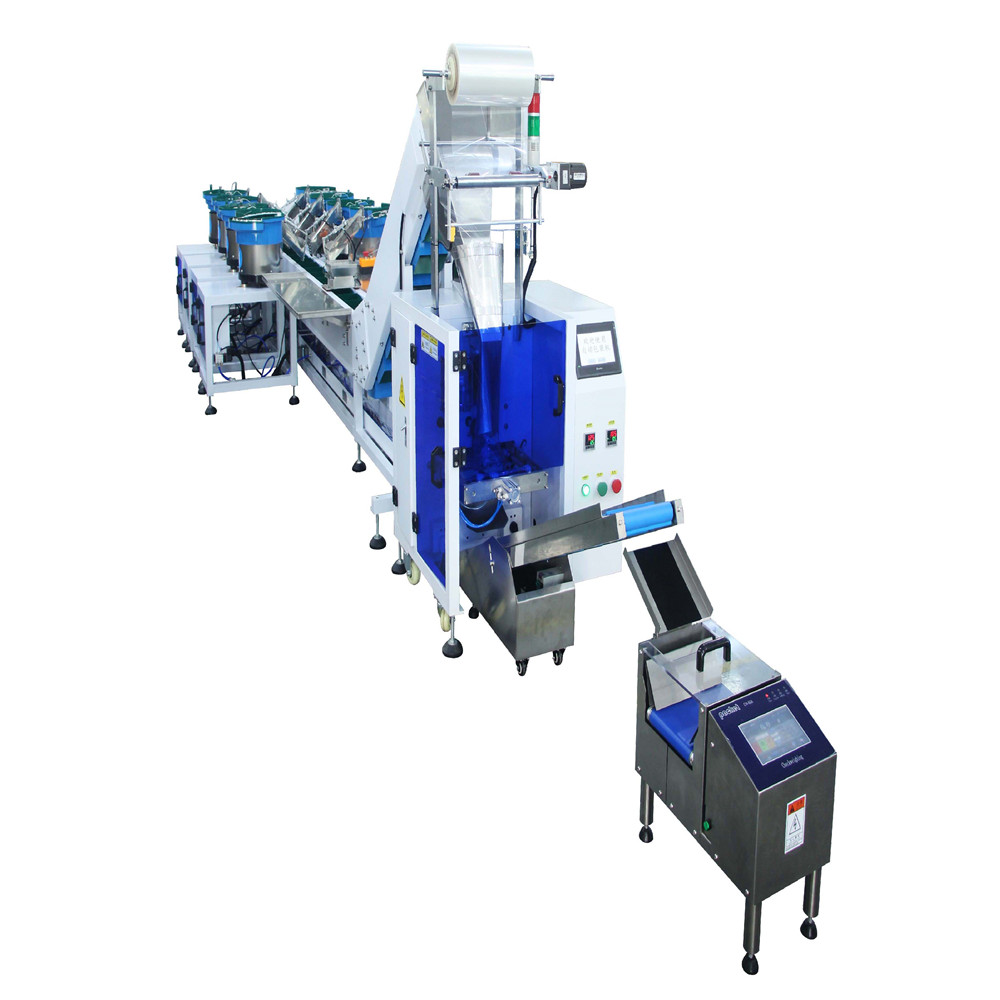

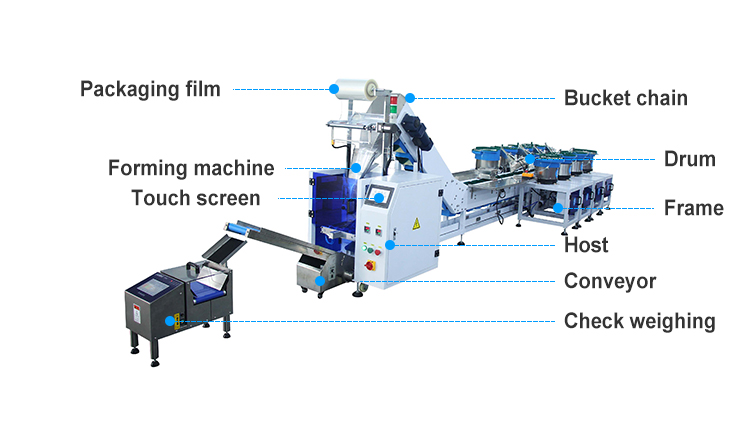

8 Vibrator Bowls Chain Bucket Automatic Filling Sealing And Packaging Machine Images
